Highlight:Portable Workshop Exhaust Fan, Industrial Workshop Exhaust Fan, Ducted warehouse wall exhaust fans
Product:Ducted Fan
General Style:Other Machining Service
Materials:Aluminum
Service:OEM Service
Drawing:CAD, DWG And Etc
Apply For:Industry
Place of Origin:Guangdong, China
Brand Name:XINGUAN
Certification:ISO9001
Model Number:E-01
Minimum Order Quantity:1 Piece
Price:US$56 Per piece
Packaging Details:Exporting Carton
Delivery Time:20 – 25 Days
Payment Terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:2000 Pieces Per Month
Description

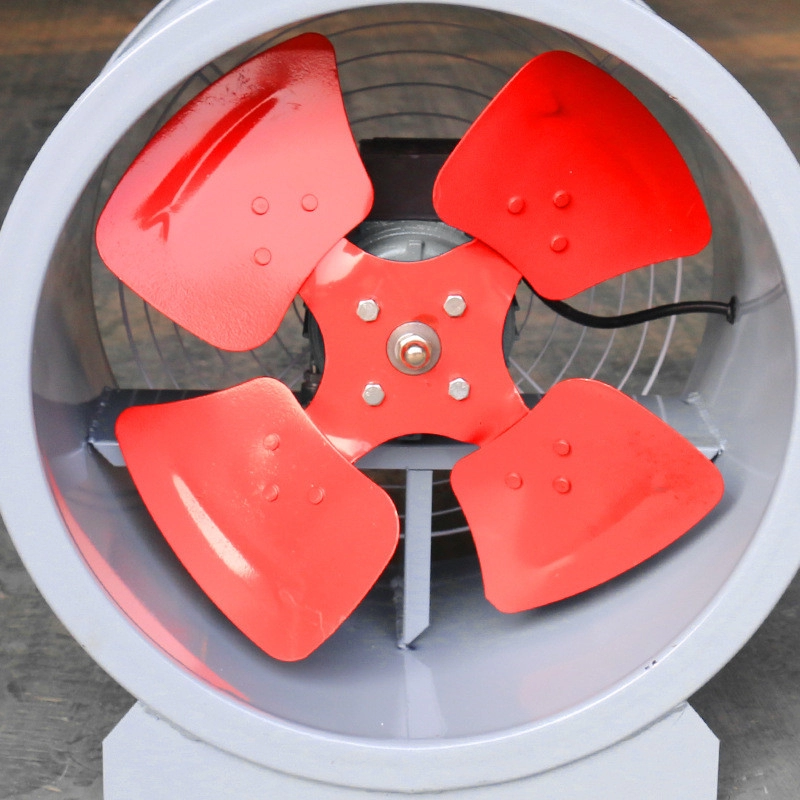

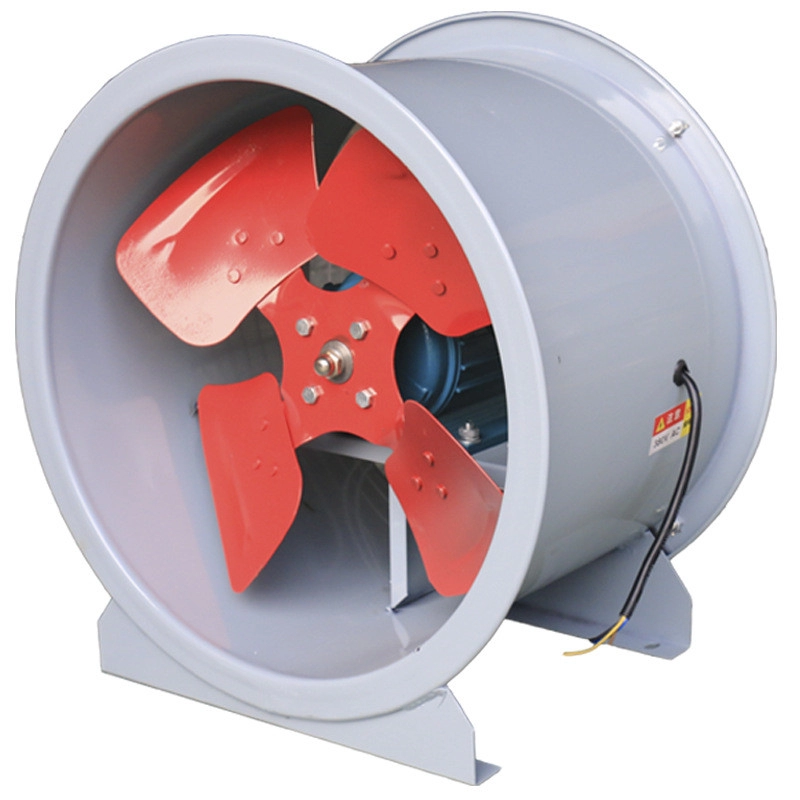

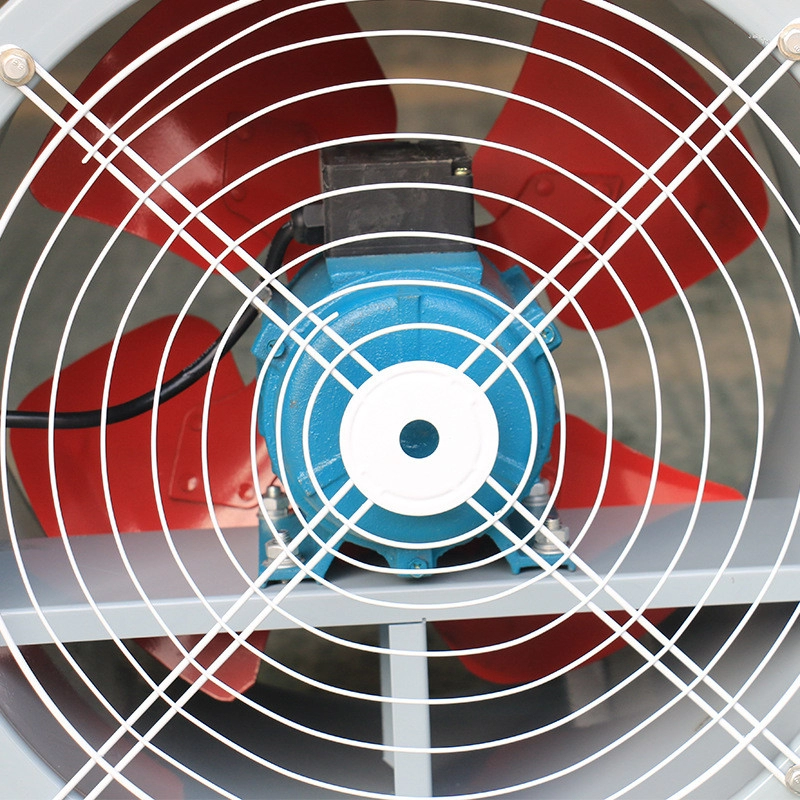

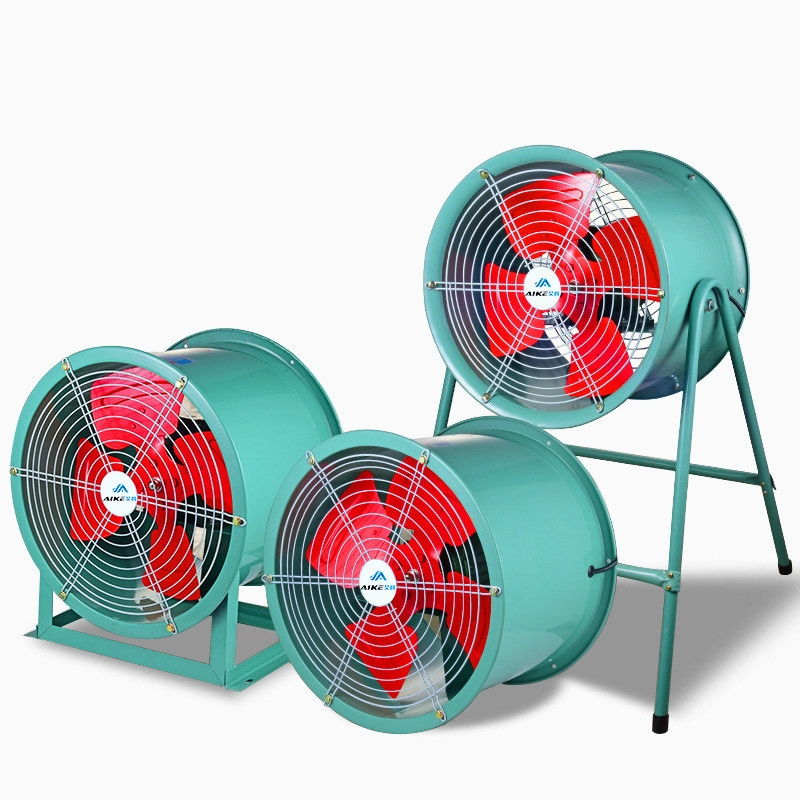

Portable Industrial Axial Blower Stainless Steel Workshop Axial Exhaust Fan
Product Description
1.External Rotor Axial Fan is a new product developed by our company by combining technology and talent advantages of many domestic colleges through repeated research and trail production.
2.The impeller is directly fixed on the excircle to make axial size smaller. Its successful development is a key breakthrough of axial flow fan and achieves internationally advanced level.
3.These fans are featured by high efficiency, whole sealing, low noise and vibration, short axial size and maintenance prevention, so it has wider applicable fields, can replace the conventional axial flow fan.
4.External Rotor Axial Fan also can be used for kitchens, industrial and mining factories and other places with serious oil, soot and dust.
5.Material of wind wheel: cast iron or palstic
6.Flow direction:suction and blowing
Model | Power | Air volume | Full pressure | Noise | Rotating speed | Size |
G-2-2 | 120W | 1300M 3/h | 140pa | 66db | 2800r/min | φ26*24 |
G-2.5-4 | 90W | 1000m 3/h | 35pa | 35pa | 1450r/min | φ31*24 |
G-2.5-2 | 250W | 2100m 3/h | 215pa | 72db | 2800r/min | φ31*24 |
G-3-4 | 120W | 2000m 3/h | 59pa | 62db | 1450r/min | φ36*24 |
G-3-2 | 370W | 3000m 3/h | 230pa | 74db | 2800r/min | φ36*24 |
G-3.5-4 | 250W | 3000m 3/h | 78pa | 65db | 1450r/min | φ41*34 |
G-3.5-2 | 750W | 6000m 3/h | 260pa | 78db | 2800r/min | φ41*34 |
G-4-4 | 550W | 5300m 3/h | 167pa | 74db | 1450r/min | φ46*34 |
G-4-2 | 1500W | 11000m 3/h | 230pa | 83db | 2800r/min | φ46*34 |
G-5-4 | 1100W | 11000m 3/h | 200pa | 75db | 1450r/min | φ56/34 |
G-5-2 | 2200W | 18700m 3/h | 300pa | 86db | 2800r/min | φ56*34 |
G-6-4 | 2200W | 18700m 3/h | 300pa | 86db | 1450r/min | φ66*46 |
G-7-4 | 3000W | 24500m 3/h | 350pa | 87db | 1450r/min | φ76*64 |
G-8-4 | 4000W | 37200m 3/h | 435pa | 435db | 1450r/min | φ86*54 |
