Highlight：220V Axial Air Ventilation Fan, Portable Axial Air Ventilation Fan, Flexible warehouse ventilation fan
Product：Axial Flow Fan
Drawing Format：CAD, DWG And Etc
Materials：304 Stainless Steel
Type：Laser Machining
Application：Industrial Application
Service：OEM Service
Place of Origin：Guangdong, China
Brand Name：XINGUAN
Certification：ISO9001
Model Number：E-01
Minimum Order Quantity：1 Piece
Price：US$56 Per piece
Packaging Details：Exporting Carton
Delivery Time：20 – 25 Days
Payment Terms：L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability：2000 Pieces Per Month
Description

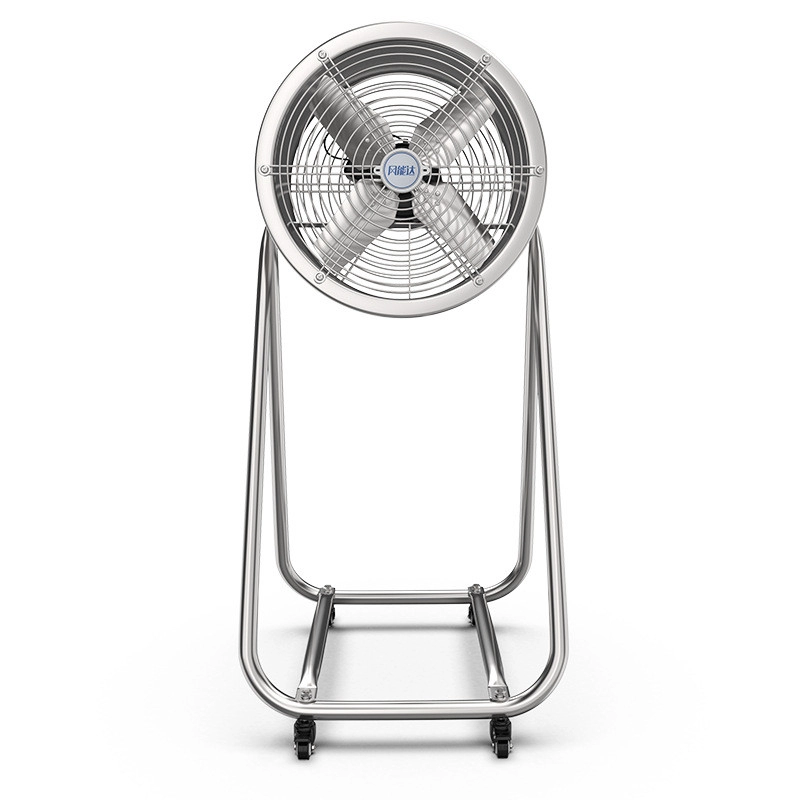

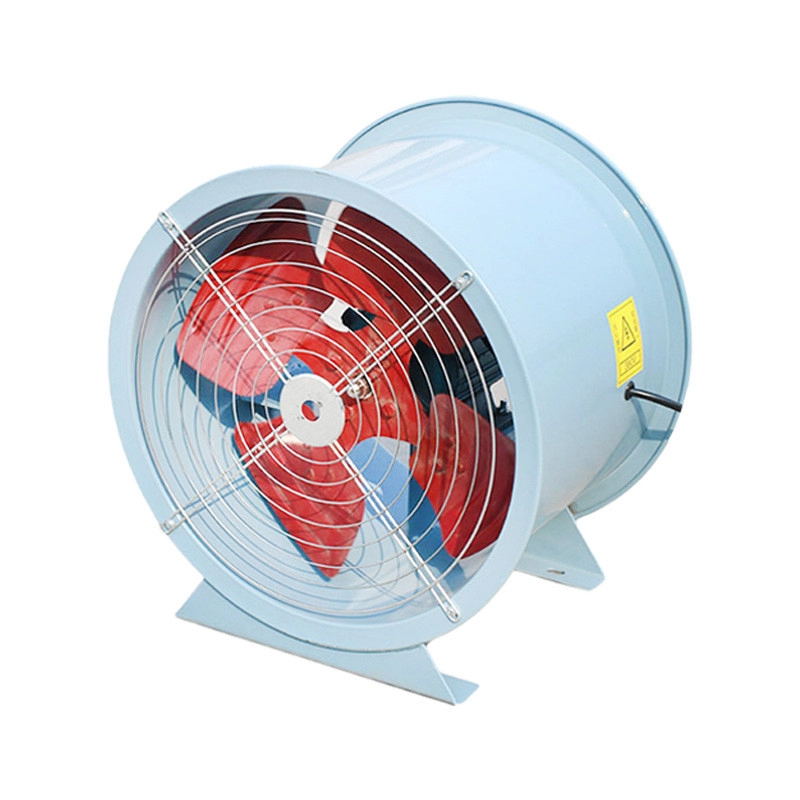

220V Portable Ventilation Axial Exhaust Fan Flexible Small Volume Ventilation Fan
Product Description
Axial fan offered comes designed and developed in superior construction finish as well as in extensive research designs so as to provide for reliable usage. These fan come with support of external rotor coaxial pipe support and is offered with three-phase/single phase support.
Specification
| Model | Power | Air volume | Full pressure | Noise | Rotating speed | Size |
| G-2-2 | 120W | 1300M 3/h | 140pa | 66db | 2800r/min | φ26*24 |
| G-2.5-4 | 90W | 1000m 3/h | 35pa | 35pa | 1450r/min | φ31*24 |
| G-2.5-2 | 250W | 2100m 3/h | 215pa | 72db | 2800r/min | φ31*24 |
| G-3-4 | 120W | 2000m 3/h | 59pa | 62db | 1450r/min | φ36*24 |
| G-3-2 | 370W | 3000m 3/h | 230pa | 74db | 2800r/min | φ36*24 |
| G-3.5-4 | 250W | 3000m 3/h | 78pa | 65db | 1450r/min | φ41*34 |
| G-3.5-2 | 750W | 6000m 3/h | 260pa | 78db | 2800r/min | φ41*34 |
| G-4-4 | 550W | 5300m 3/h | 167pa | 74db | 1450r/min | φ46*34 |
| G-4-2 | 1500W | 11000m 3/h | 230pa | 83db | 2800r/min | φ46*34 |
| G-5-4 | 1100W | 11000m 3/h | 200pa | 75db | 1450r/min | φ56/34 |
| G-5-2 | 2200W | 18700m 3/h | 300pa | 86db | 2800r/min | φ56*34 |
| G-6-4 | 2200W | 18700m 3/h | 300pa | 86db | 1450r/min | φ66*46 |
| G-7-4 | 3000W | 24500m 3/h | 350pa | 87db | 1450r/min | φ76*64 |
| G-8-4 | 4000W | 37200m 3/h | 435pa | 435db | 1450r/min | φ86*54 |
