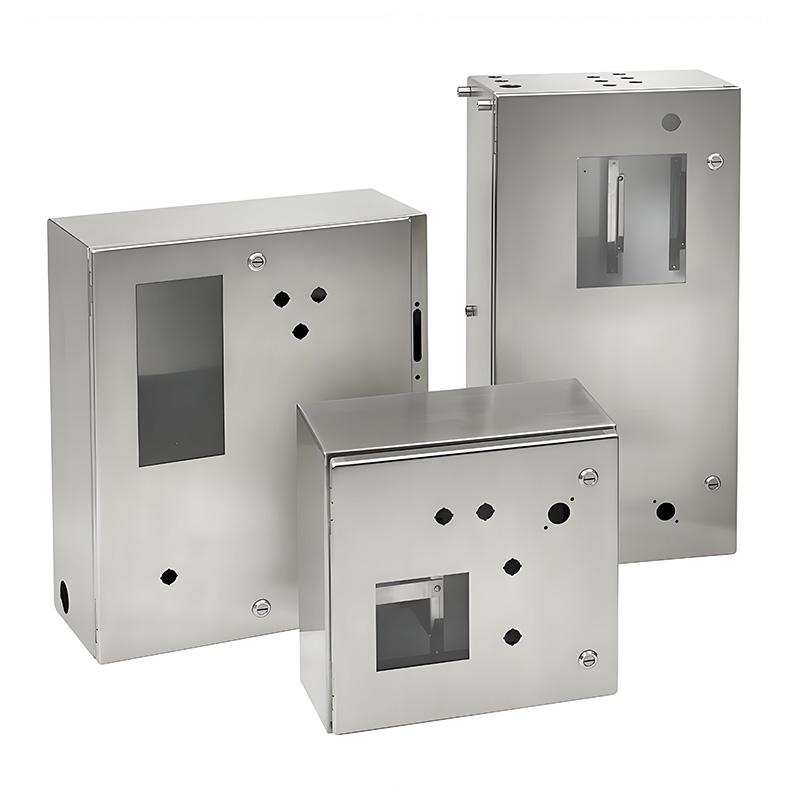

Sheet Metal Enclosure Design Secrets: 7 Must-Know Rules for Industrial Success

Ever wonder why some sheet metal enclosures last decades while others fail prematurely? The difference lies in strategic design choices. This guide reveals professional techniques to optimize functionality, manufacturability, and cost-efficiency.

Rule 1: Material Selection – The Foundation of Success

Choosing the wrong material is the #1 rookie mistake. Consider environmental exposure, mechanical stress, and budget. Aluminum (5052-H32) offers excellent corrosion resistance for outdoor equipment, while cold-rolled steel provides superior strength for industrial machinery. Surprisingly, stainless steel costs 40% more than aluminum but may be mandatory for food/pharma applications.

Material Comparison Table

Rule 2: Bend Radius & K-Factor Mastery

Incorrect bend allowances cause dimensional nightmares. Remember: Inside bend radius should equal material thickness. For 2mm steel? Use 2mm radius. The K-factor (typically 0.33-0.5) determines bend deductions. Calculate precisely using this formula:

$$ BA = \frac{\pi \times (R + K \times T) \times \theta}{180} $$

Where BA = Bend Allowance, R = Inside Radius, K = K-factor, T = Thickness, θ = Bend angle

Rule 3: EMI Shielding Strategies

Electromagnetic interference can cripple sensitive electronics. Surprisingly, even 0.5mm gaps can leak 30dB of interference! Our team’s 2025 medical device project solved this using:

1. Conductive gaskets at seams
2. EMI fingers around doors
3. Seam welding instead of fasteners

Result? Passed FCC Class B with 10dB margin.

Rule 4: Ventilation vs. Protection Balance

Thermal management battles environmental protection. Here’s the sweet spot:

• Use louver designs with drip edges
• Position vents at convection points
• Add removable filters for dusty environments

Pro Tip: CFD simulations can reduce prototyping costs by 65% (ASME Journal, 2024).

Rule 5: Design for Manufacturability (DFM)

Optimize your sheet metal enclosure design for efficient production:

1. Standardize hole sizes (reduce tool changes)
2. Allow 4x material thickness between features
3. Use self-clinching fasteners where possible
4. Design symmetrical parts to prevent orientation errors
5. Specify grain direction for cosmetic surfaces

Rule 6: Surface Finish Considerations

Finishing impacts both aesthetics and durability. Powder coating adds 0.003-0.005″ thickness – account for this in tight tolerances! For chemical resistance, consider:

• Anodizing (aluminum)
• Zinc-nickel plating (steel)
• Chromate conversion coating

Rule 7: Cost Optimization Techniques

Smart sheet metal enclosure design reduces costs without compromising quality:

• Use tab-and-slot assemblies instead of brackets
• Design with standard sheet sizes (e.g., 48″x96″)
• Specify tolerances only where critical (±0.5mm is often sufficient)

Example: Reducing unique part count from 28 to 19 cut assembly time by 35% in our conveyor control project.
