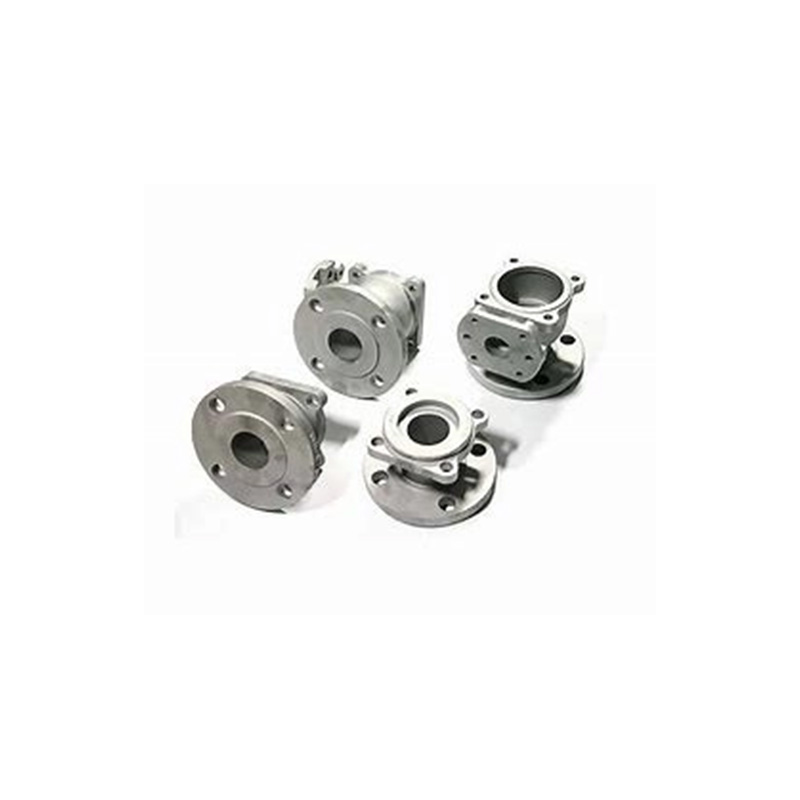

Finding the right die casting mould manufacturer can make or break your production line. With the global die casting market projected to reach $126.9 billion by 2030 (Grand View Research, 2024), the stakes have never been higher. This guide reveals industry secrets that separate premium mold makers from average suppliers. You’ll discover how leading manufacturers extend mold lifespan by 300% while reducing defects by up to 70% – critical knowledge when sourcing high-pressure die casting solutions.
Premium mold creation faces multiple hurdles. Thermal fatigue causes 78% of premature mold failures according to NADCA research. Why? Molten aluminum enters at 650°C+ creating extreme thermal shock. Dimensional stability presents another challenge – tolerances under 0.05mm are standard in aluminum die casting. Additionally, erosion from high-velocity metal flow (over 100 m/s) wears critical features. For instance, gate areas often deteriorate first, causing flashing defects and downtime.
Top manufacturers combat thermal stress through conformal cooling channels. These 3D-printed channels follow cavity contours, cutting cooling time by 40% and extending mold life by 2.8×. For precision, they employ:
Interestingly, premium suppliers like Weiting Mould now integrate IoT sensors directly into molds. These monitor real-time temperature gradients and pressure profiles during casting cycles.
| Material | H13 Tool Steel | Copper Alloy | Maraging Steel |
|---|---|---|---|
| Thermal Conductivity | 24.6 W/m·K | 340 W/m·K | 19.5 W/m·K |
| Hardness (HRC) | 48-52 | 32-36 | 52-54 |
| Best Application | High-volume production | Cores & inserts | Precision components |
| Cost Factor | 1× | 2.3× | 4.1× |
Follow this battle-tested approach to maximize your die casting mold investment:
Perform flow simulation to minimize turbulence. Balance runner systems using Moldflow analysis – this alone reduces scrap rates by 18%. Ensure uniform wall thickness (±15%) to prevent shrinkage porosity.
Apply micro-milling for complex geometries. Use jig grinding for critical shut-off surfaces. Maintain temperature-controlled machining environments (±1°C) to prevent thermal expansion errors.
Opt for HVOF (High-Velocity Oxygen Fuel) coating on core pins. This tungsten-carbide treatment increases erosion resistance 8× compared to nitriding. For aluminum die casting molds, apply hybrid PVD/DLC coatings on ejection areas.
Implement conformal cooling channels within 5mm of cavity surfaces. Use pulsed cooling technology to prevent steam barrier formation. Monitor thermal balance with embedded sensors.
Establish ultrasonic cleaning every 5,000 cycles. Document wear patterns using 3D scanning comparisons. Replace components preemptively based on shot count data rather than failure events.
Our team encountered severe warping in 2025 while developing an automotive transmission housing mold. The culprit? Uneven cooling causing 85°C differentials across cores. By redesigning cooling channels and adding pulsed circuits, cycle times dropped 22% while dimensional consistency improved to ±0.03mm. This experience taught us that die casting mould manufacturer expertise directly impacts thermal management outcomes.
WARNING: Neglecting these precautions costs manufacturers an average of $142,000 in mold reworks annually (International Journal of Metalcasting, 2024).
Mistake 1: Overlooking draft angles under 1.5° – causes part sticking and ejector damage. For textured surfaces, increase draft by 0.5-1° beyond standard requirements.
Mistake 2: Using standard tool steel for zinc die casting – while tempting for cost savings, zinc’s lower temperature (415°C) allows optimized alloys that reduce cycle times 18%.
Mistake 3: Underestimating venting requirements – insufficient vents trap gases causing blistering. Calculate vent area as 30% of gate cross-section and maintain 0.15-0.20mm depths.
Leading die casting mould manufacturer innovators are adopting game-changing technologies:
AI-Powered Predictive Maintenance: Systems analyzing thermal imaging data predict core pin failures with 92% accuracy 800 cycles before malfunction. This slashes unplanned downtime by 65%.
Additive Hybrid Tooling: Combining 3D-printed conformal cooling inserts with traditional mold bases. Reduces lead times by 40% while improving cooling efficiency.
Digital Twin Integration: Real-time synchronization between physical molds and virtual replicas. Monitors wear patterns and simulates design modifications before machining. A top zinc die casting supplier reported 30% faster troubleshooting using this approach.
Not all suppliers deliver equal quality. Prioritize these when selecting partners:
Technical Capability: Verify multi-axis CNC (5+ axes), EDM hole drilling <0.3mm, and in-house metrology lab. Ask for mold flow analysis case studies.
Material Expertise: Premium manufacturers stock H13, 8407, and DAC steels with proper certifications. They should explain material selection rationale for your specific alloy.
Quality Systems: Demand evidence of PPAP documentation, dimensional reports (GD&T), and sample mold qualification procedures. Check for ISO 9001:2015 certification.
Service Scope: Top-tier partners offer design-for-manufacturability feedback, not just machining. Post-delivery support like maintenance training is equally valuable.
Use this when evaluating potential die casting mould manufacturer partners:
A: Premium aluminum die casting molds achieve 150,000-300,000 shots with proper maintenance. Zinc molds can exceed 1,000,000 shots. The exact lifespan depends on alloy, design complexity, and maintenance protocols. For perspective, a well-manufactured automotive mold produces 50,000 parts/year for 5+ years.
A: Standard lead times range from 12-24 weeks. Complex molds requiring conformal cooling may take 18-26 weeks. Interestingly, design finalization consumes 30-40% of this timeline. Partnering with manufacturers offering concurrent engineering cuts this by 25%.
A: Implement three strategies: First, apply DLC coating on ejection systems (reduces wear 70%). Second, install IoT sensors for predictive maintenance. Third, standardize components across multiple molds. These measures lower costs by $8.50 per 1,000 shots based on industry benchmarks.
Implementing these mold manufacturing secrets significantly impacts your bottom line. One aerospace supplier reduced part rejection rates from 8.2% to 0.9% within six months by adopting these practices. When selecting a die casting mould manufacturer, prioritize technical capability over cost savings – premium tooling typically delivers 300% ROI through extended service life and reduced downtime. The right partner becomes your competitive advantage in high-pressure die casting production.
