Ever seen an expensive control panel fail because its housing rusted through? That jagged hole exposing circuits to factory dust? We have. In 2025, our team diagnosed a $18k system failure where a custom sheet metal enclosure specified was too thin for vibrational loads. Within months, stress fractures developed – followed by catastrophic dust ingress. Total loss: 23 production hours. Ouch. This isn’t about boxes. It’s about protecting mission-critical electronics. Get the enclosure wrong, and you risk equipment failure, safety hazards, or voided warranties. But nail the engineering, and these workhorses shield your tech for decades. Below are 6 battle-tested solutions avoiding that $18k mistake.

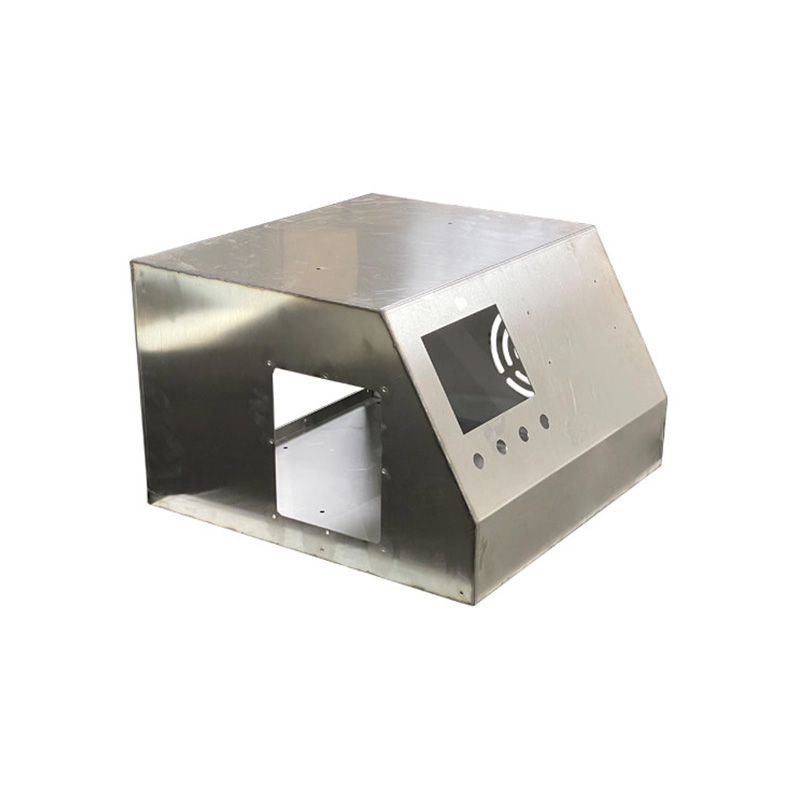

Not all metals handle chemical splashes or coastal air. For food processing plants? Stainless steel enclosures (304/316L grades) resist corrosive washdowns. But here’s the twist: thickness matters as much as material. A thin 0.8mm stainless box dents if someone leans on it. Go 1.5mm+ for structural loads. One automotive client used 2mm powder-coated carbon steel for robotic controller housings. Why? Impact resistance from forklift near-misses. Saved $46k/year in replacement costs :cite[8].
Overheating shrinks PCB lifespan by 50% per 10°C above spec :cite[3]. Passive vents work for low-wattage gear. But high-heat builds? Specify custom sheet metal enclosures with integrated fan mounts or copper heatsink walls. Example: A solar inverter maker reduced thermal shutdowns by 80% after adding laser-cut chimney vents atop aluminum housings. Airflow matters. Bonus: Powder-coat interiors black? Radiate heat 15% faster than bare metal.
EMI crashes sensors near welding stations or MRI rooms. How? Gaps in enclosure seams leak interference like a sieve. The fix? Laser-welded seams with EMI gaskets. One medical device firm eliminated false readings by switching from riveted to fully welded 1.2mm aluminum sheet metal enclosure fabrication. Conductive coatings on gaskets sealed micron-level gaps. Rule: Continuous metal contact blocks 90%+ EMI. Skip this for IoT devices at your peril.
An “IP54” label seems cryptic. Broken down: “5” blocks dust jets; “4” resists splashed water. But outdoor kiosks? You need IP66 (heavy rain) or IP68 (submersion). Achieving this demands precision. Custom metal enclosures need compressed gasket channels and door overlaps exceeding 10mm. Stahlin’s PolyStar series hits NEMA 4X/IP66 using molded gaskets – but metal requires machined grooves :cite[9]. Pro tip: Specify test reports. Assumptions cause floods.
Ripping out entire enclosures for upgrades wastes $2.7k on average per retrofit (IndustryWeek 2024). Smart solution? Custom sheet metal boxes with removable side panels and T-slot internal mounting. Eaton’s QBX series uses pre-tapped M6 grounding studs and adjustable feet – no drilling needed when adding components :cite[3]. We helped a factory cut retrofit time from 5 hours to 40 minutes using modular enclosures. Design for change.
Powder coating isn’t just color. Type III polyester coatings withstand 1,500+ hours salt spray testing. Essential for offshore rigs or highway equipment. But custom sheet metal enclosures in labs? Smooth electroplated zinc suffices. One gotcha: Thick coatings can clog threaded holes. Mask threads pre-coating. For FDA zones? Specify non-toxic coatings. Finish = survival skin.
| Criteria | Metal Enclosures | Non-Metal (e.g., Polycarbonate) |
|---|---|---|
| Durability | High impact/load resistance | Prone to scratches/cracks |
| Heat Tolerance | 500°F+ (no warp) | 250°F max (Stahlin Black) |
| EMI Shielding | Fully achievable | Requires metal liners |
| Cost (100 units) | $$$ (higher upfront) | $$ (but replaces faster) |
Myth 1: “Thinner metal saves money.” → Vibration fatigue cracks cost 3x more long-term.
Myth 2: “Any gasket seals IP66.” → Compression force matters. Test or fail.
Myth 3: “Stainless = stainless everywhere.” → Grade 304 fails in chlorine pools; only 316L survives.
A robotics firm used off-the-shelf NEMA 12 boxes ($220 each). Custom sheet metal enclosure fabrication let them:
Total cost: $149/unit. Volume: 500 units. Saved $35.5k. ROI? 9 weeks. See GD Weiting’s enclosure engineering guidelines.
Q: How thin can sheet metal enclosures be?
A: 0.5mm aluminum for lightweight electronics; 1.2mm+ steel for industrial. Below 0.5mm risks denting.
Q: Can I modify enclosures post-purchase?
A: Yes, but laser-cutting pre-installed boxes risks slag damage. Modify pre-coating.
Q: Lead time for custom sizes?
A: 3-5 weeks typically. Complex geometries add 1-2 weeks :cite[8].
