Aluminum Die Casting Mould Must-Have Design Rules

Designing high-performance aluminum die casting moulds requires balancing complex engineering requirements. Surprisingly, over 60% of casting defects originate from mould design flaws rather than production issues. This guide explores critical design rules that separate successful projects from costly failures.

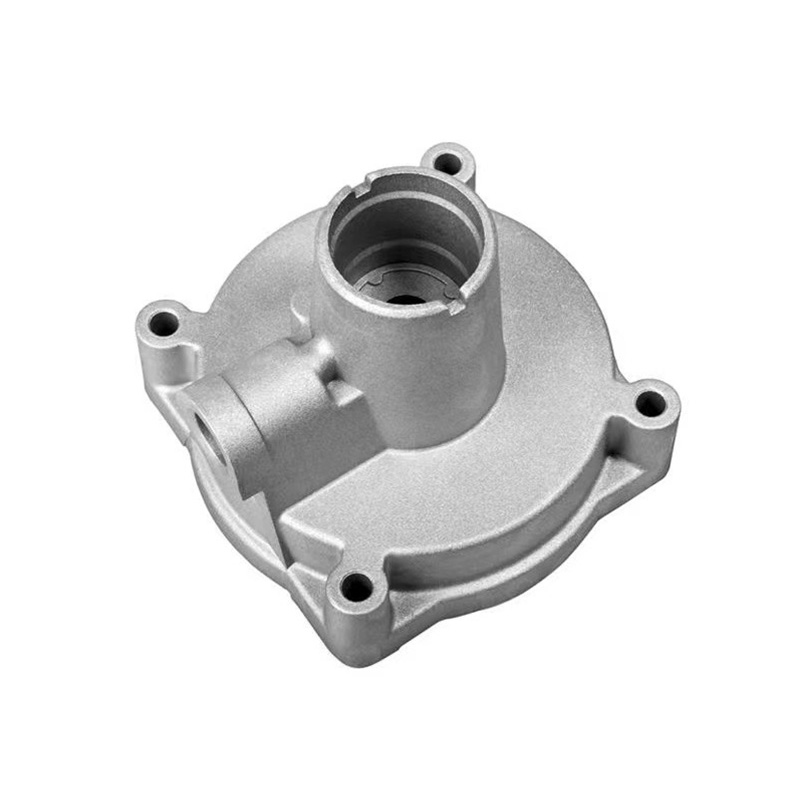

Core Challenges in Aluminum Die Casting Mould Design

Aluminum die casting moulds face extreme conditions: 700°C molten metal injected at 100+ m/s under 1,000+ bar pressure. These conditions demand exceptional design precision. Common challenges include thermal stress cracking, premature erosion, and dimensional instability.

Thermal Management Solutions

Proper cooling design prevents warping and extends mould life. Our team discovered in a 2025 automotive project that conformal cooling channels increased production speed by 22% while reducing thermal fatigue. Rule of thumb: cooling channels should cover 80% of cavity surfaces with 10-15mm spacing.

Draft Angles and Wall Thickness

Inadequate draft angles cause sticking and surface damage. For aluminum die casting moulds, 1-3° draft is typically required depending on feature depth. Uniform wall thickness (ideally 2-4mm) prevents shrinkage defects. Interestingly, adding 0.5mm extra thickness in high-stress areas can quadruple component lifespan.

Critical Design Elements Comparison

5-Step Design Optimization Process

1. Simulate First: Run flow analysis before cutting steel
2. Balance Thermal Zones: Map temperature gradients using IR data
3. Gate StrategicallyPerimeter-only ventsDeep pocket vents + overflowSurface Finish#3 EDM finishMirror polish + textureEjection SystemStraight pinsStepped pins + air assist


   5-Step Design Optimization Process

   1. Simulate First: Run flow analysis before cutting steel
   2. Balance Thermal Zones: Map temperature gradients using IR data
   3. Gate Strategically: Position gates to minimize turbulence
   4. Vent Thoroughly: Add vents at all high-gas-risk areas
   5. Validate Iteratively: Test with short-run prototypes

   Common Design Mistake: Ignoring Thermal Expansion

   Aluminum die casting moulds expand significantly during operation. Not accounting for thermal growth causes dimensional errors exceeding 0.3mm in production. Always design critical dimensions at operating temperature!

   Real-World Case: Automotive Bracket Production

   We redesigned a problematic aluminum die casting mould for suspension brackets. By implementing conformal cooling and modified gating, cycle time dropped from 45 to 32 seconds while reducing scrap rate from 18% to under 3%. This demonstrates how proper design directly impacts profitability.

   Mould Design Checklist

   Draft angles ≥1.5° on all features
   Wall thickness variation <30%
   Cooling channels within 15mm of cavity
   Venting at all trapped-air locations
   Ejector pins sized for 20% contact area
   FEA validation of stress points
   Surface finish specification per zone

   FAQs: Aluminum Die Casting Mould Design

   Q: How does aluminium alloy choice affect mould design?

   A: High-silicon alloys like A380 require harder tool steels (H13 or higher) due to abrasive wear. Thermal management needs also vary significantly.

   Q: What’s the typical lifespan of aluminum die casting moulds?

   A: Well-designed moulds produce 150,000-500,000 shots. Premium designs with optimized cooling can exceed 1 million cycles.

   Q: How much does aluminum die casting mould design impact part cost?

   A: Design determines 60-70% of total part cost. Optimized designs reduce scrap, energy use, and cycle times simultaneously.
