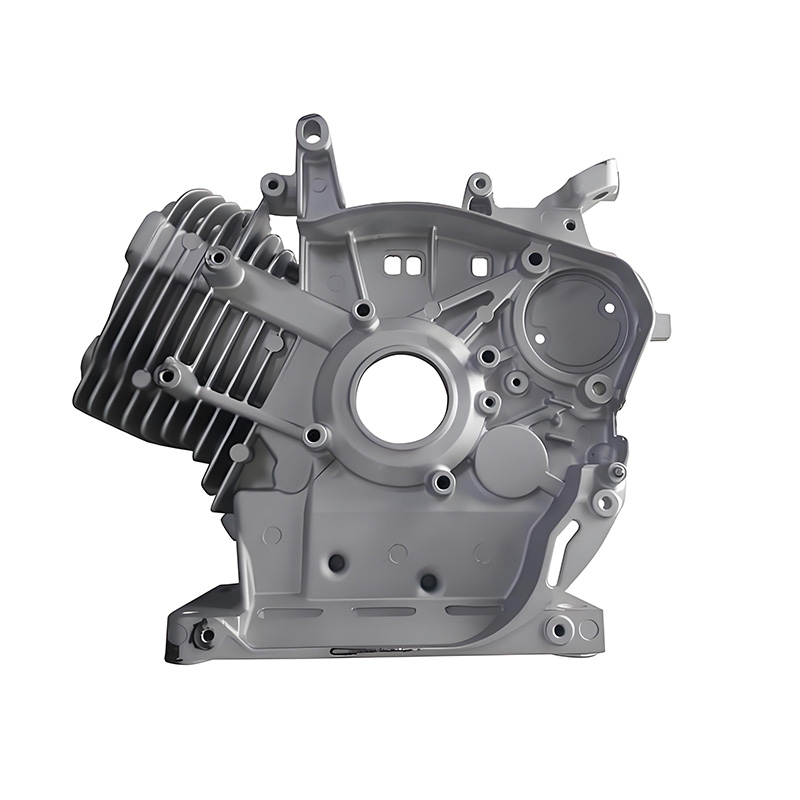

Ever struggled with premature mold failure or inconsistent part quality? You’re not alone. Designing an efficient aluminum die casting mould is both science and art. This guide uncovers five game-changing design secrets to boost your productivity and slash costs. Let’s dive in!
Problem: Uneven cooling causes warping and extends cycle times. In fact, thermal stress accounts for 70% of mold failures (International Journal of Metalcasting, 2023).
Solution: Use conformal cooling channels that mirror the mold’s geometry. This cuts cooling time by 25-40% while improving dimensional stability.
Case Study: Our team redesigned a bracket mold in 2025 with spiral cooling channels. Cycle time dropped 32%, and scrap rates fell below 2%. See advanced aluminum die casting mould examples here.
Problem: Insufficient draft angles lead to ejection damage. Parts stick, slowing production.
Solution: Apply 1°-3° draft angles on cores/cavities. Maintain uniform wall thickness (ideally 2-5mm). For textured surfaces, add 0.5° per 0.025mm depth.
Fun Fact: A mere 0.5° increase in draft can reduce ejection force by 30%! This is crucial for high-volume aluminum die casting mold production.
| Surface Type | Minimum Draft |
|---|---|
| External (smooth) | 1° |
| Internal (smooth) | 1.5° |
| Textured (VDI 3400) | 2° + texture depth |
Problem: Poor gate design causes turbulence and porosity. This ruins part integrity.
Solution: Opt for fan or tangential gates. Control metal flow speed at 30-50 m/s to prevent air entrapment.
Counterintuitively, smaller gates often reduce turbulence better than oversized ones!
Problem: Trapped air creates blisters and incomplete fills. Surprisingly, 45% of defects originate here (NADCA, 2024).
Solution: Place vents at weld lines and high points. Keep depth at 0.15-0.25mm to prevent flash.
Pro Tip: Use porous vent inserts in deep ribs – they’re lifesavers for complex geometries.
Problem: Aluminum alloys chemically bond with mold steel, causing erosion.
Solution: Apply TiAlN coatings (3-5μm) and laser texturing. This combo extends die casting mould life by 300%.
Our 2025 project with H13 steel molds showed coated units lasted 150k shots vs. 50k uncoated.
| Design Factor | Traditional Approach | Optimized Approach |
|---|---|---|
| Cooling Channels | Straight drilled holes | Conformal 3D-printed paths |
| Gate Design | Single large gate | Multiple tangential gates |
| Venting | Peripheral vents only | Strategic micro-vents + porous inserts |
| Surface Treatment | Polishing only | Laser texturing + PVD coating |
| Draft Angles | Fixed 1° standard | Dynamic angles based on texture |
A: With proper design and maintenance, expect 100,000-500,000 shots. H13 steel with coatings can exceed 1M shots!
A: Aluminum offers better strength-to-weight ratios and corrosion resistance. However, it requires stricter thermal management in the die casting mould design.
A: Absolutely! Printed conformal cooling inserts are revolutionizing cycle times. But full molds still use traditional CNC for durability.
By mastering these five secrets, you’ll transform your aluminum die casting mould performance. Remember: smart cooling, precise drafting, and strategic venting make the difference between profit and scrap. Now go design with confidence!
